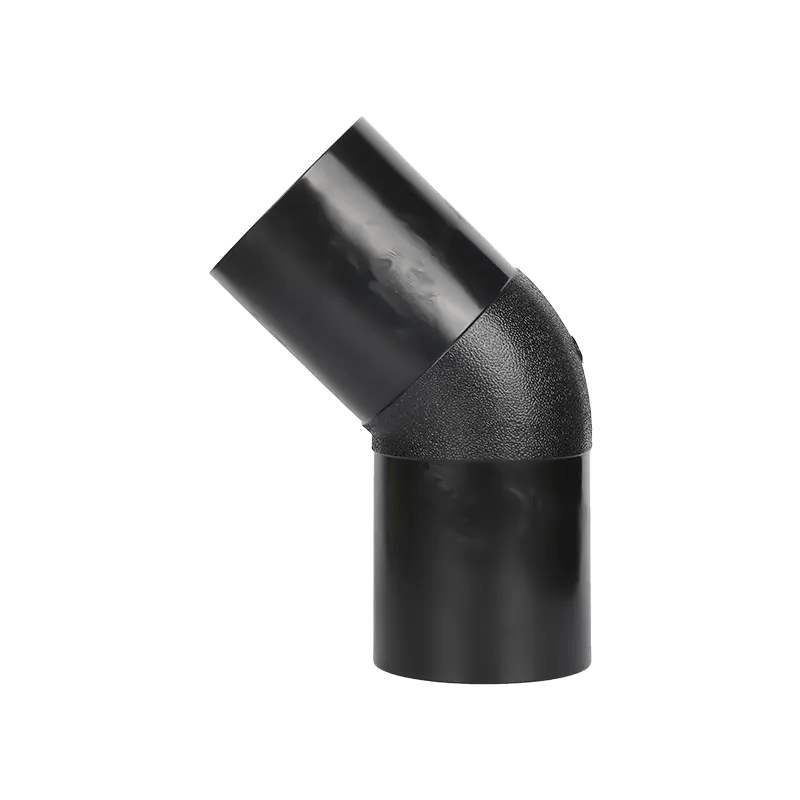

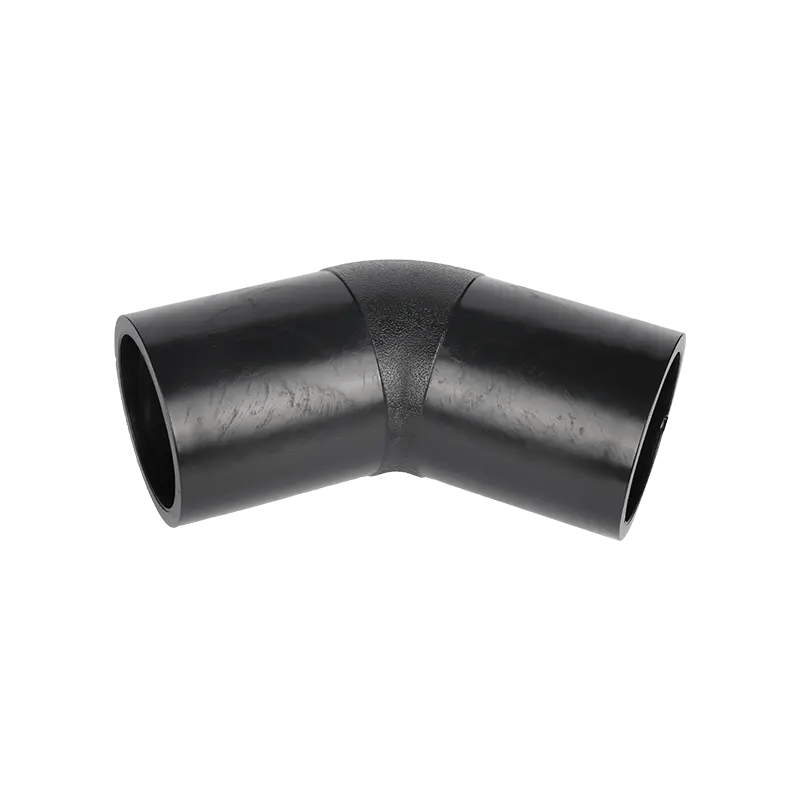

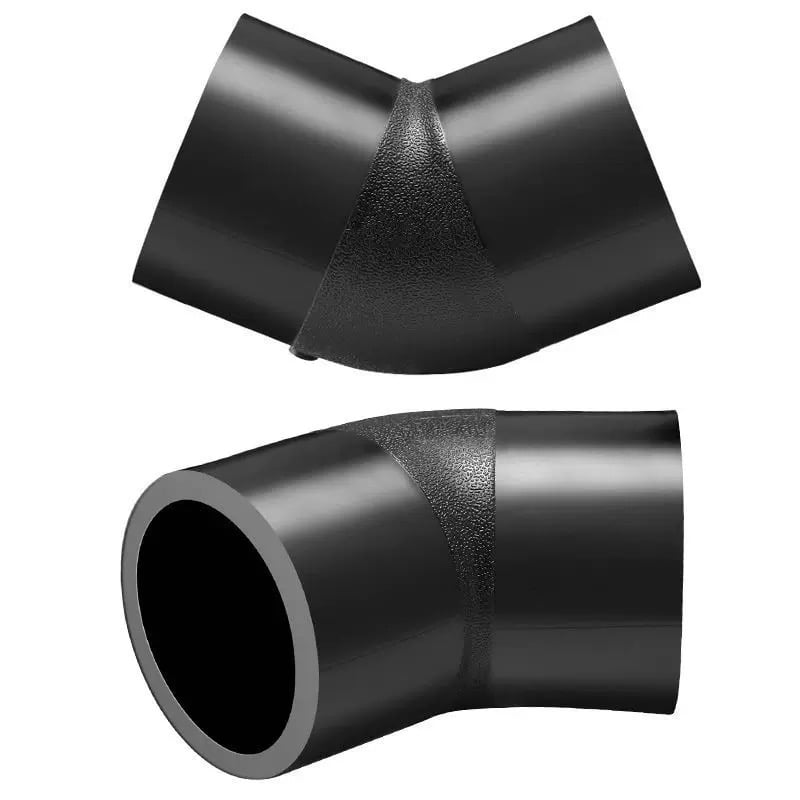

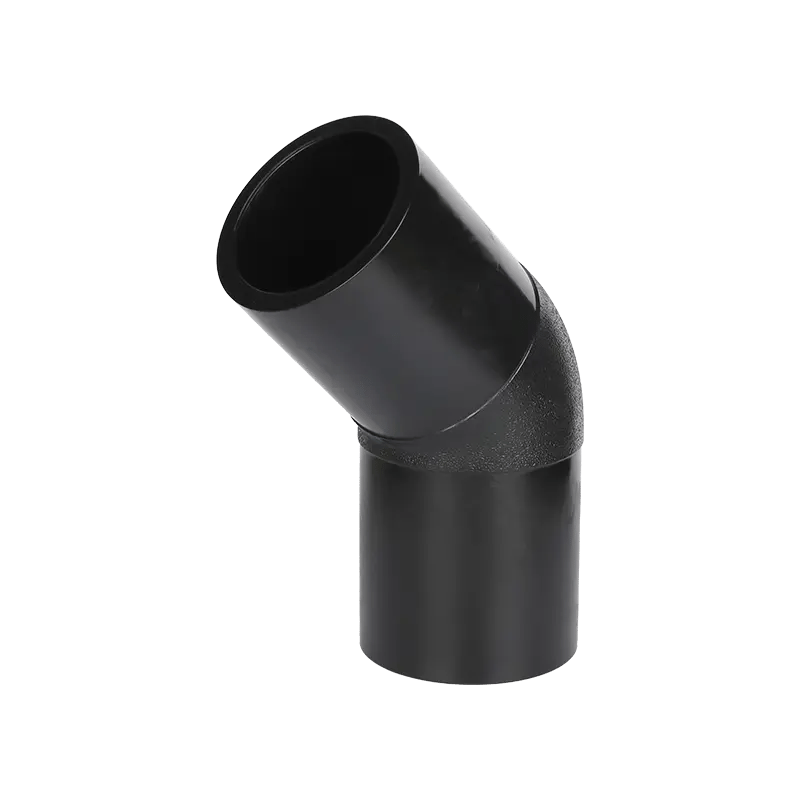

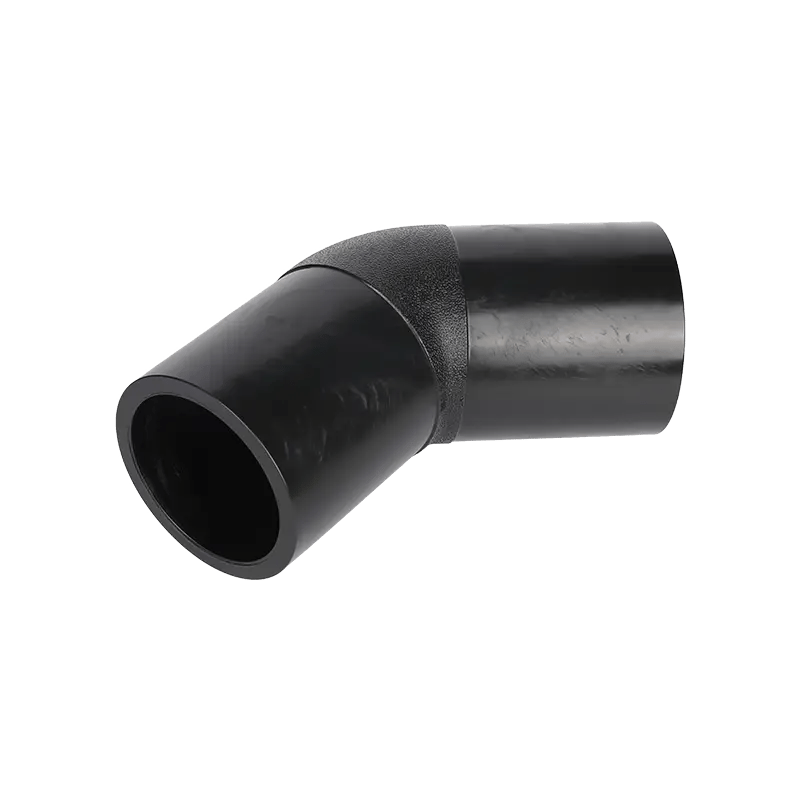

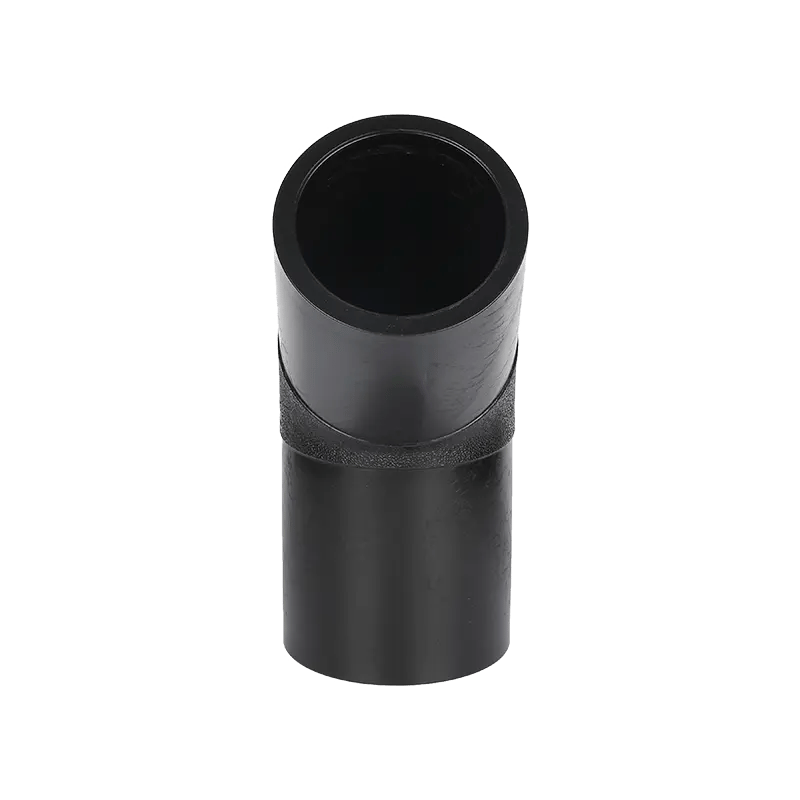

HDPE 45 Degree Elbow Butt Fusion Fitting

Meets GB/T13663-2000,ISO4427. HDPE water supply pipe use PE100 as raw materials, processing good flexibility, corrosion resistance, excellent impact resistance and other characteristics, pipe and fittings can be employed melt socket connection and butt fusion connection,to insure the pipe system safety and reliability as well as low construction cost.

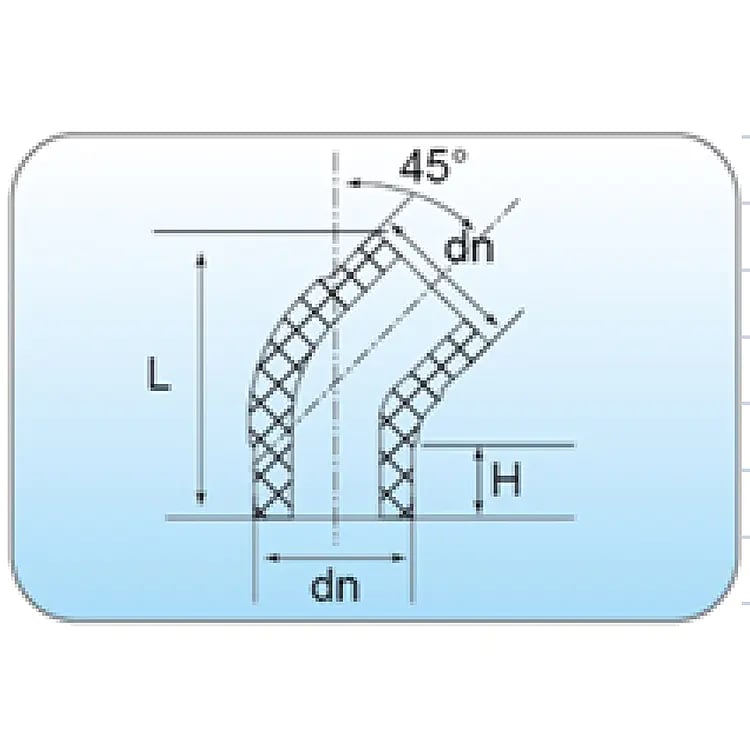

Specification (mm)	Nominal Pressure (MPa)	Specification (mm)	Nominal Pressure (MPa)	Specification (mm)	Nominal Pressure (MPa)
20-45 °	1.6MPa	180-45 °	1.25MPa	75-45 °	1.6MPa
25-45 °	1.6MPa	200-45 °	1.25MPa	90-45 °	1.6MPa
32-45 °	1.6MPa	225-45 °	1.25MPa	110-45 °	1.6MPa
40-45 °	1.6MPa	250-45 °	1.25MPa	125-45 °	1.6MPa
50-45 °	1.6MPa	280-45 °	1.25MPa	140-45 °	1.6MPa
63-45 °	1.6MPa	315-45 °	1.25MPa	160-45 °	1.6MPa
75-45 °	1.6MPa	355-45 °	1.0MPa	180-45 °	1.6MPa
90-45 °	1.6MPa	400-45 °	1.0MPa	200-45 °	1.6MPa
110-45 °	1.6MPa	450-45 °	1.0MPa	225-45 °	1.6MPa
63-45 °	1.25MPa	500-45 °	1.0MPa	250-45 °	1.6MPa
75-45 °	1.25MPa	560-45 °	1.0MPa	280-45 °	1.6MPa
90-45 °	1.25MPa	630-45 °	1.0MPa	315-45 °	1.6MPa
110-45 °	1.25MPa	710-45 °	1.0MPa	355-45 °	1.6MPa
125-45 °	1.25MPa	800-45 °	1.0MPa	400-45 °	1.6MPa
140-45 °	1.25MPa	63-45 °	1.6MPa	450-45 °	1.6MPa
160-45 °	1.25MPa	75-45 °	1.6MPa	500-45 °	1.6MPa
				630-45 °	1.6MPa

Product Description

Our HDPE 45 Degree Elbow Butt Fusion Fitting is a high-quality product designed with top-of-the-line materials and manufacturing processes for optimal performance and durability. With its excellent fusion capabilities, this fitting ensures a leak-free connection that lasts for years to come. It is ideal for use in various applications including water distribution, gas pipelines, and industrial systems. Its easy installation feature, coupled with the product's robust and reliable design, makes it an excellent choice for anyone looking to upgrade their piping system. The HDPE 45 Degree Elbow Butt Fusion Fitting boasts a plethora of benefits, such as high resistance to UV rays, corrosion, and abrasion, making it a reliable and cost-effective solution for your piping needs. Order today and make a significant upgrade to your Tube Manufacturing Industry.

Product Features

HDPE Material: Made from high-density polyethylene material
45 Degree Elbow: Designed with a 45-degree angle to allow for directional changes in pipeline systems
Butt Fusion Fitting: Butt fusion process ensures a strong and leak-proof joint
Core Extraction: The fitting allows for easy extraction of the core without expansion
Durable: Resistant to corrosion, chemicals, and abrasion, ensuring long-lasting performance
