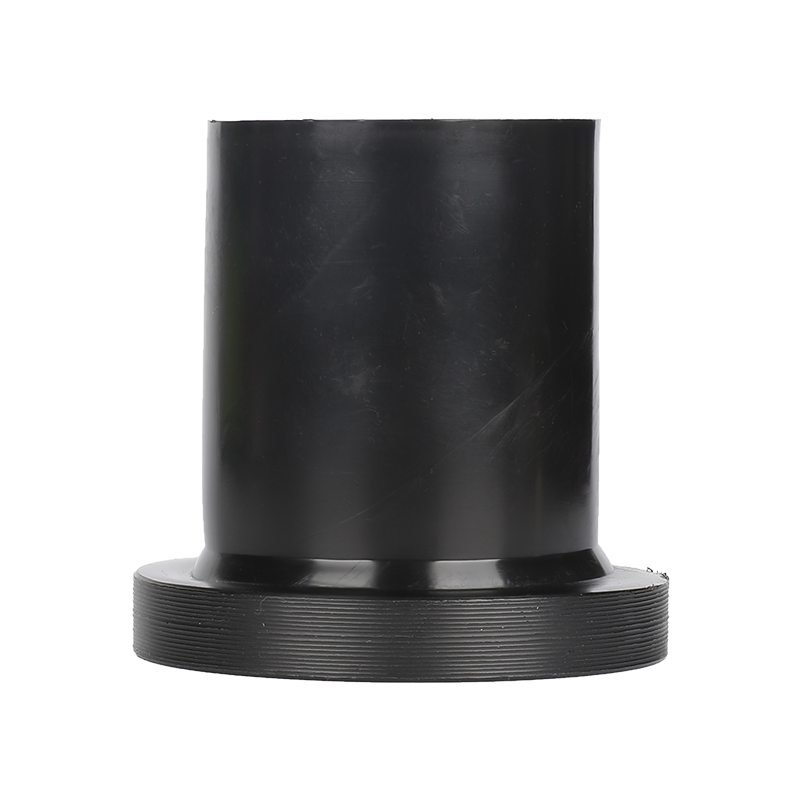

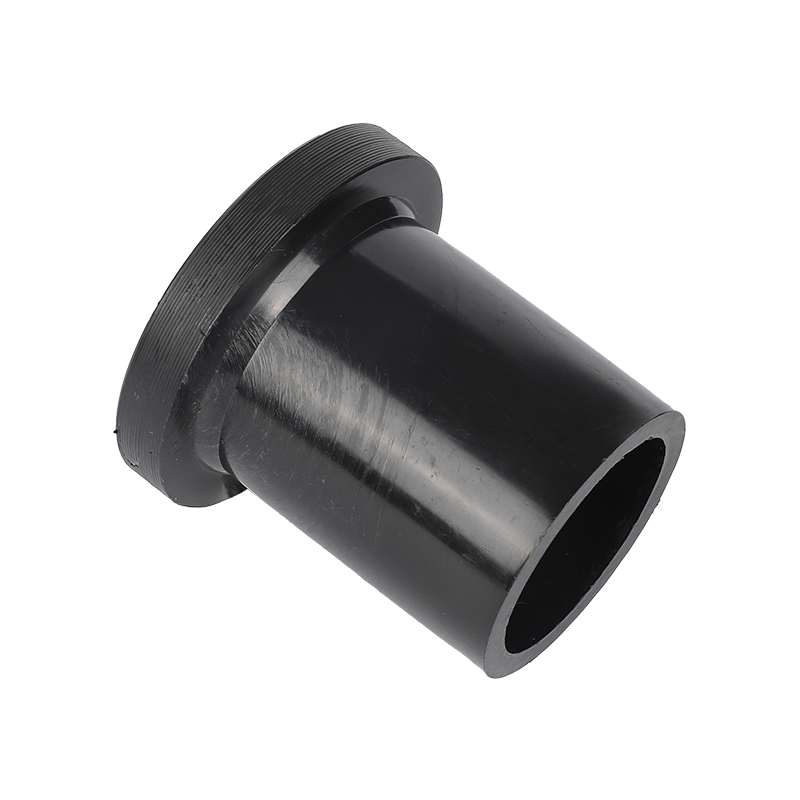

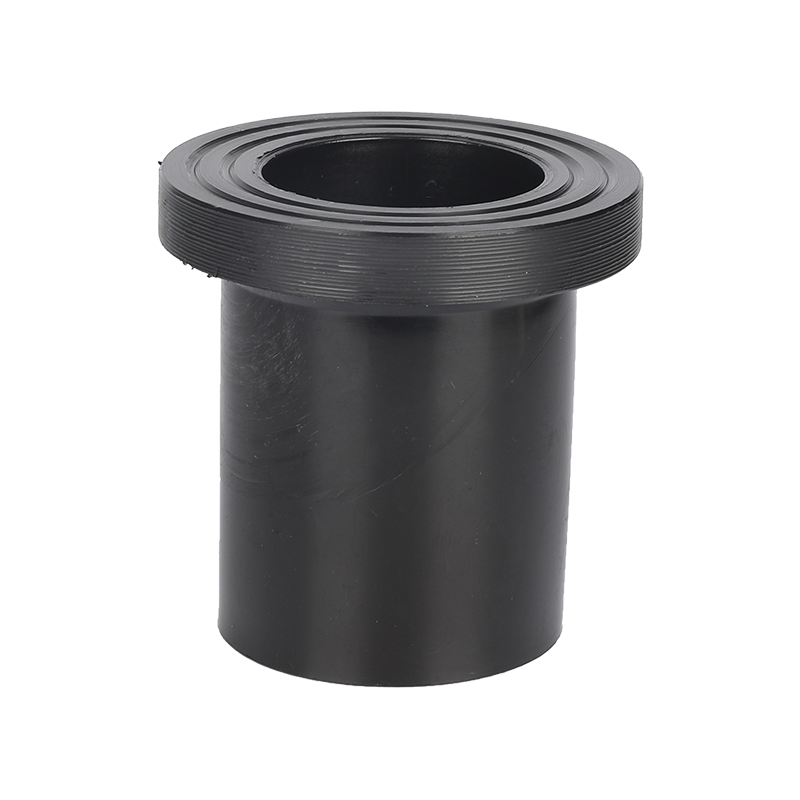

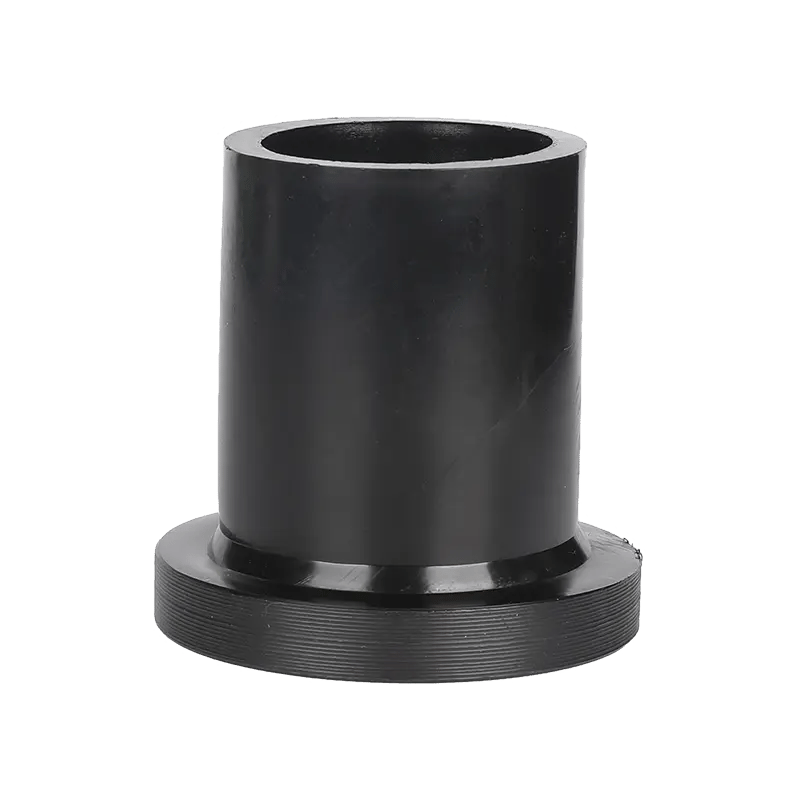

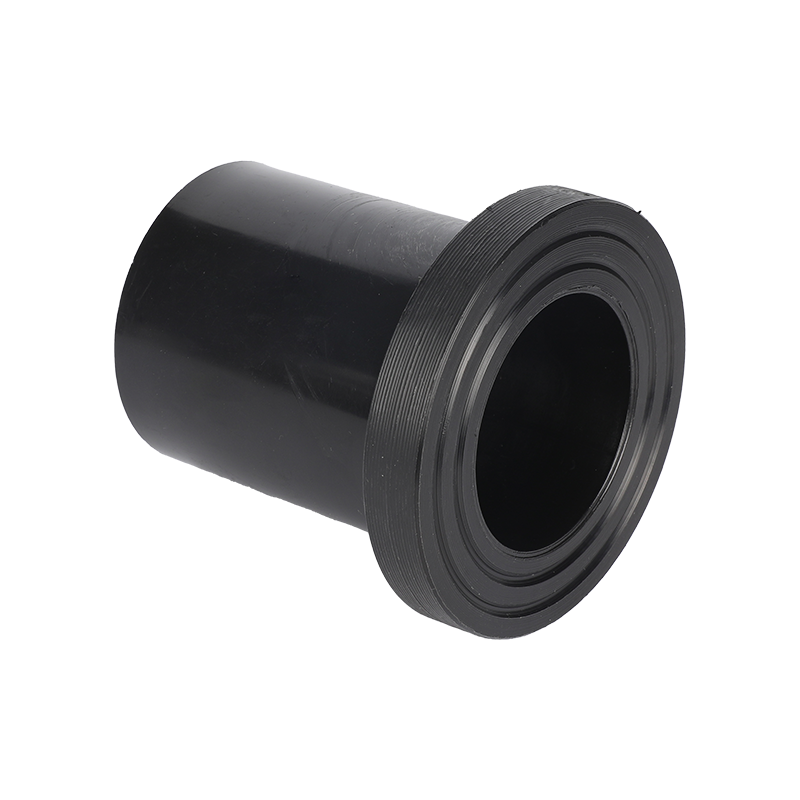

  • HDPE Flange Adapter Butt Joints

    Meets GB/T13663-2000,ISO4427. HDPE water supply pipe use PE100 as raw materials, processing good flexibility, corrosion resistance, excellent impact resistance and other characteristics, pipe and fittings can be employed melt socket connection and butt fusion connection,to insure the pipe system safety and reliability as well as low construction cost.

    Product Specification

    Specification
    (mm)
    Nominal Pressure
    (MPa)
    Specification
    (mm)
    Nominal Pressure
    (MPa)
    Specification
    (mm)
    Nominal Pressure
    (MPa)
    Specification
    (mm)
    Nominal Pressure
    (MPa)
    40 1.6MPa 110 1.25MPa 315 1.25MPa 900 1.0MPa
    50 1.6MPa 125 1.25MPa 355 1.0MPa 1000 1.0MPa
    63 1.6MPa 140 1.25MPa 400 1.0MPa 1200 1.0MPa
    75 1.6MPa 160 1.25MPa 450 1.0MPa 63 1.6MPa
    90 1.6MPa 180 1.25MPa 500 1.0MPa 75 1.6MPa
    110 1.6MPa 200 1.25MPa 560 1.0MPa 90 1.6MPa
    63 1.25MPa 225 1.25MPa 630 1.0MPa 110 1.6MPa
    75 1.25MPa 250 1.25MPa 710 1.0MPa 125 1.6MPa
    90 1.25MPa 280 1.25MPa 800 1.0MPa

    Product Description

    If you're in the market for reliable and high-performing HDPE flange adapter butt joints, you're in the right place. Our product is perfect for customers in the tube manufacturing industry, boasting a range of top-notch features and benefits that will elevate the quality of your operations. With our HDPE flange adapter butt joints, you can expect superior strength and durability, effortless fitting and assembly, and seamless connections that stand the test of time. Whether you're looking for products that can handle high-pressure applications or need to join different pipe sizes effectively, our flange adapter butt joints are the ideal solution. Trust us to provide you with products that deliver excellent performance, unbeatable value, and long-lasting quality. Order now and see the difference!

    Product Features

    • HDPE material for high durability and resistance to corrosion
    • Flange adapter design for easy connection to different piping systems
    • Butt joint configuration for secure and leak-proof connections
    • Core extraction without expansion for efficient maintenance and repair
    • Suitable for various applications such as water distribution, irrigation, and industrial processes

    Application of HDPE Flange Adapter Butt Joints

    • Used to connect HDPE pipes with flanges
    • Butt joint design ensures secure and leak-proof connection
    • Compatible with various sizes of HDPE pipes and flanges
    • Suitable for use in water supply, sewerage, and gas pipelines
    • High-quality material provides excellent chemical and UV resistance
